DURABLE AND SAFE
Expert Glass Pet Door Installations
At North Geelong Glass, we can install a pet door for you in just about any spot you'd like with glass.
Depending on your window frame setup, we've got some new options available to make sure your pet can access the door easily.
When installing pet doors, we are unable to cut a hole in existing glass as pet doors need to be installed in safety glass for the impact from the pets using the door. Unfortunately, you can't cut a hole in existing tempered safety glass as it releases the pressure during the tempering process and will cause the glass to explode.
On the site visit we will be able to answer any questions you may have that aren't already answered below.
We supply and install the standard circle pet doors and now offer new rectangle options, which are made here in Australia, which are heavy duty and also allow for better accessibility depending on frame type.
Below are the types of installs and some information on each so you can get an idea and some information relevant to your windows.
Standard Mounting Option
The most common setup is where the cut-out (square or circle) is cut into the piece of glass during the cutting stage before going through the heat treating stage, which tempers the glass, turning it into safety glass.
With this option, any cut-out into glass needs a minimum of 80 mm edge to edge for strength. Depending on the window frame you've got, sometimes once you add the frame height and the 80mm clearance, the pet door is too high.
This is usually a problem if installing into a timber or aluminium frame with a large bottom frame rail, or if your pet has short legs, as it won't be high enough to access the door.
The standard mounting option is usually best when you've got a medium-sized dog upwards with no large bottom frame rail.
U-Cut Option

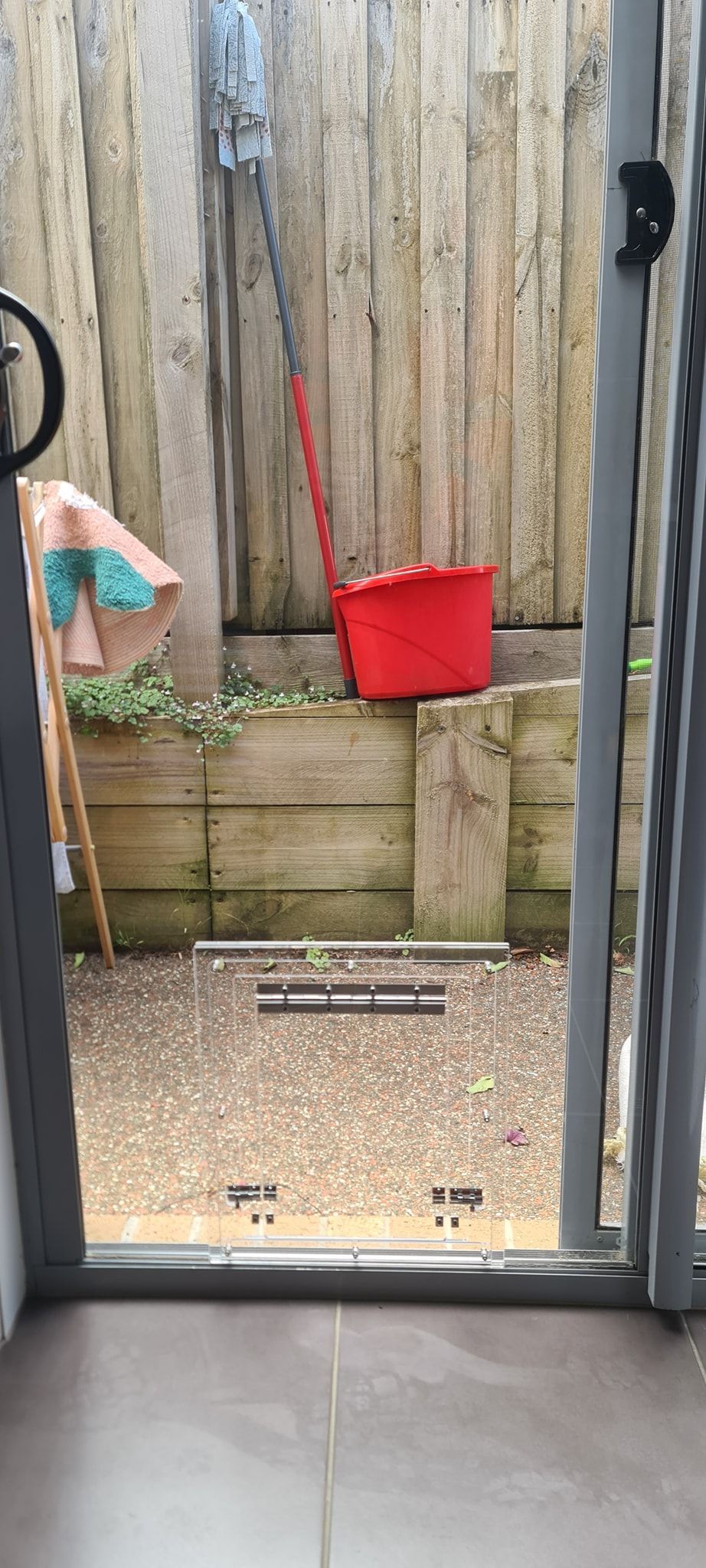

The new style available is what we call a U-Cut option.
What we do with this is instead of cutting a cutout in the glass, we cut the bottom of the glass in the shape of a U. This way we no longer need a minimum clearance of 80 mm.
This option is best when the frame you're installing the pet door into is quite tall or with shorter-legged animals.
With the U-Cut option, we can only do it with a rectangle to form the U shape and are unable to do it with a circle-style pet door.
Custom Made - Full Sized Acrylic Panels
Sometimes if you're installing into a frame that will be too small for the glass and pet door assembly, an option is a full-sized acrylic panel with the pet flap cut into it.
Not only does this look clean, but it also allows us more options for smaller windows that usually would not support the glass and pet assembly.
Custom Made - Acrylic Split Panels
Sometimes you've got either a long or narrow window, which the full-sized acrylic panel wouldn't work for and is also too small for a pet door assembly.
The option here is installing what we call a split panel, which is half glass and half acrylic. We then join the acrylic and glass with a piece of aluminium H section in either white or black.
Pet Door Assembly’s – Sizes are for an indication only and may slightly differ from product
| Option | Shape | Name | Flap Size | U-Cut Option |
|---|---|---|---|---|
| 1 | Circle | Cat Door | 180 x 170 | No |
| 2 | Circle | Dog Door | 285 x 250 | No |
| 3 | Rectangle | Medium Door | 305 x 220 | Yes |
| 4 | Rectangle | Large Door | 415 x 310 | Yes |
| 5 | Rectangle | XL Door | 480 x 360 | Yes |
| 6 | Rectangle | Greyhound Door | 505 x 280 | Yes |
| 7 | Rectangle | Whippet Door | 400 x 240 | Yes |
